KIT 4.0
The KIT 4.0 is a high voltage system made of easily configurable elements. Due to its modular design, it is the ideal tool kit for conducting experiments in an university, in a R&D lab, or for a research application. A variety of experiments are possible with the generated AC, DC, and impulse voltages.

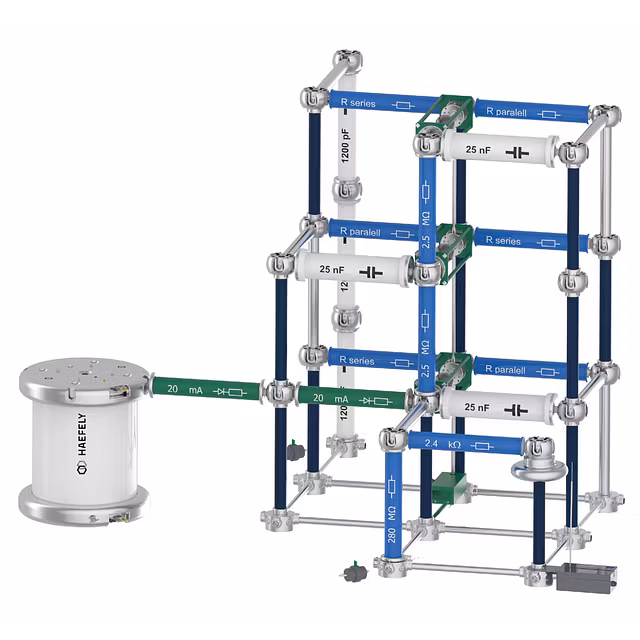

![KIT 4.0 - High Voltage Construction Kit](/fileadmin/_processed_/9/a/csm_KIT_4.0_-IMP_3_Stages_-_High_Voltage_Construction_Kit_-_HAEFELY_4be8a3d7ee.png)

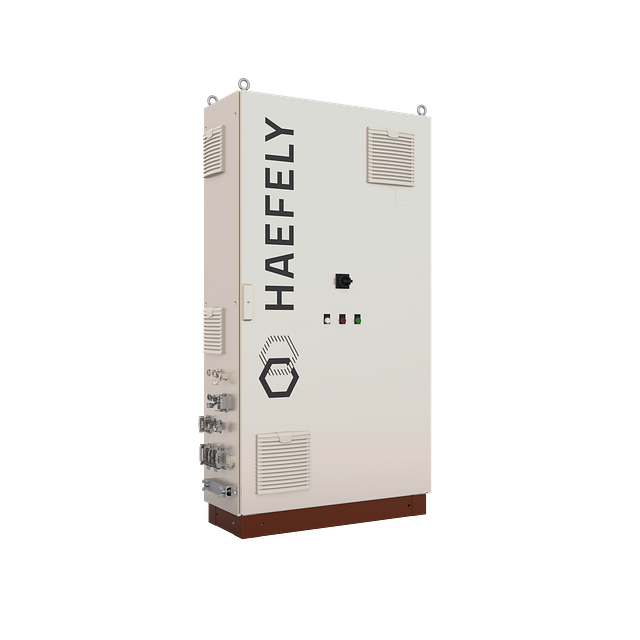

High Voltage Construction KIT 4.0 integrates state of art technology, offering variable frequency experiments to students with safety SIL 3 certification. It integrates an electronic powere supply front end and a completely refreshed accessories set. All components have their own NI LabVIEW function block, making the KIT modular in software as well as in hardware. This software add-on enables new possibilities and greater flexibility such as automated test sequences with data recording.
![](/fileadmin/pfiffner-group/gui/productDB/default.jpg)
Features
-
Based on single high-voltage elements
-
Compact AC, DC and impulse voltages test system
-
Modular configuration
- Electronic front-end
- Partial discharges free
- SIL 3 with Galvanic Isolation
- Computer controlled with windows based user interface
- LAB View control
