MIDAS micro 2883

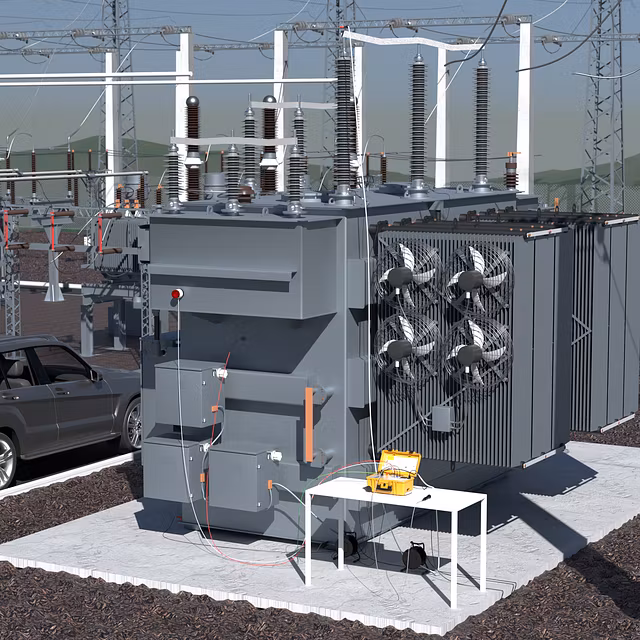

The MIDAS micro 2883 is a revolutionary C & Tan Delta / Power Factor / Dissipation Factor tester used to test the insulation of high voltage components (i.e. transformers, bushings, capacitors and so on).
![Midas micro 2883 - Mobile Insulation Diagnosis & Analysing System](/fileadmin/_processed_/c/c/csm_Midas_micro_2883__-_Mobile_Insulation_Diagnosis___Analysing_System__-_HAEFELY_-_1_cc3a807ab0.png)

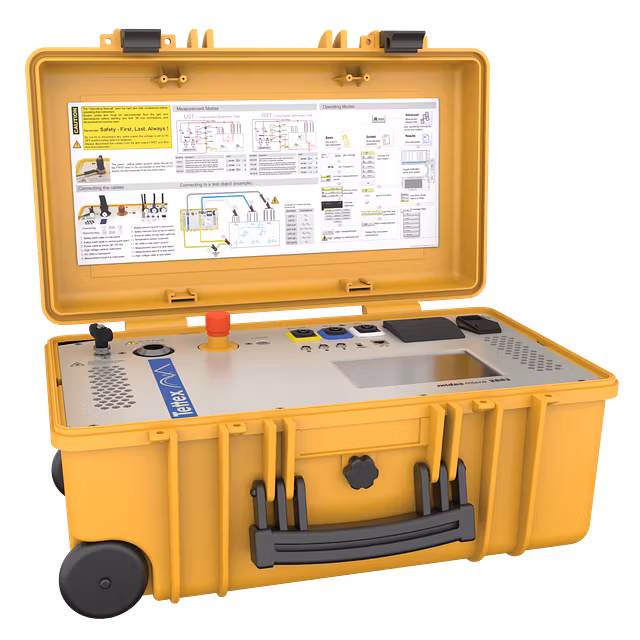

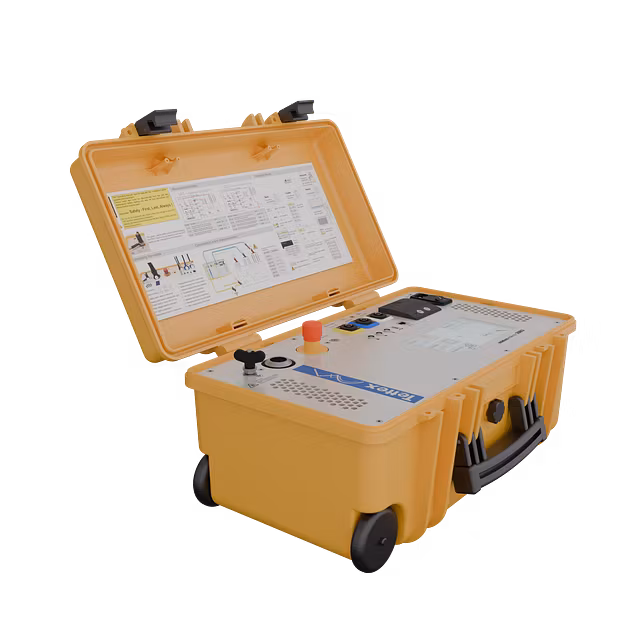

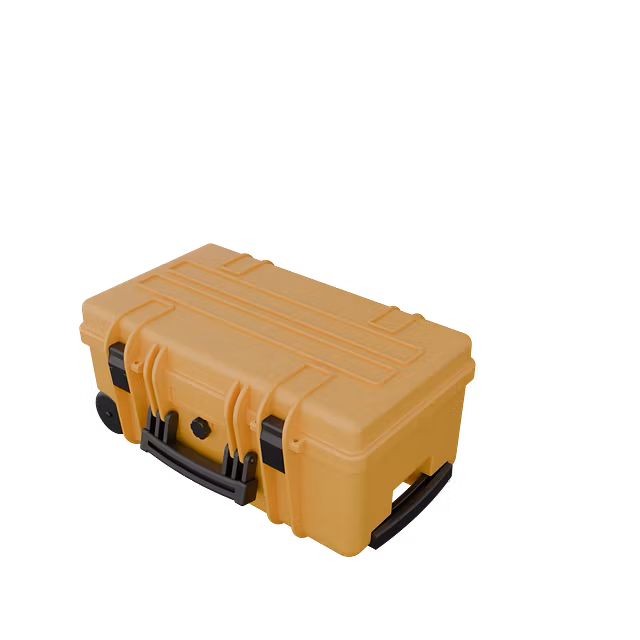

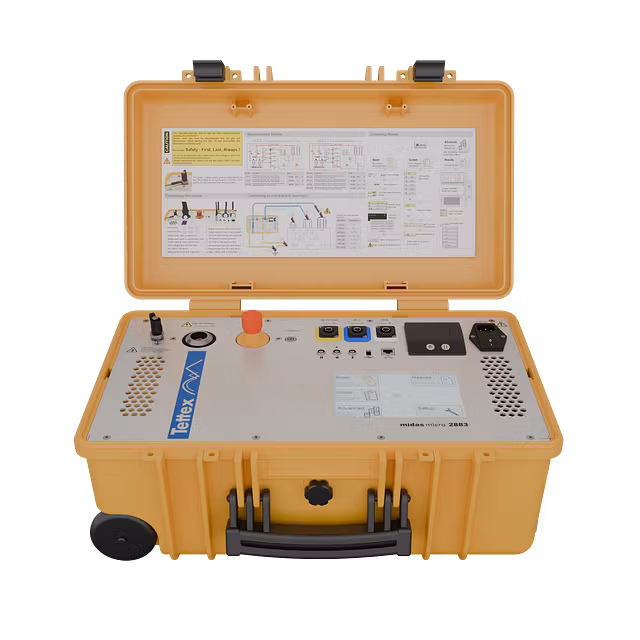

Designed and tested for all types of conditions, the complete instrument is built in one rugged case with casters.With its single-box design, weighing only 25 kg / 55 lbs, this tool can be easily transported to any testing location - in the field or in the factory. All accessories are stored in a robust duffel bag that can be affixed to the case itself. Cable drums make set-up and storage quick and convenient.MIDAS stands for Mobile Insulation Diagnosis & Analyzing System.
![](/fileadmin/pfiffner-group/gui/productDB/default.jpg)
Features
- Measures Dissipation Factor (tan d) and Power Factor (cos ϕ) with built-in high voltage supply up to 12 kV, 15 … 400 Hz including manual and automatic (sequencer) test modes.
- Compact one-box design weights only 25 kg / 55 lb
- Accuracy of 0.3% (capacitance) and 1x10-4 (tan δ)

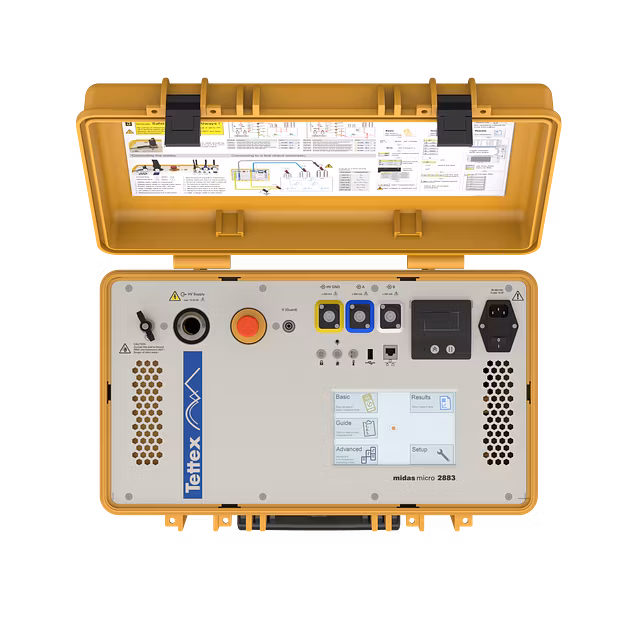

- 7” color touch screen for easy operation
- Three operating modes: basic, guide, advanced
- Safe operation with interlock, emergency stop, safety checks and HV ground surveillance
