PGR
PGR Test Systems are designed and built to perform ultra high voltage DC insulation tests on electrical apparatus, bushings, transformers & cables

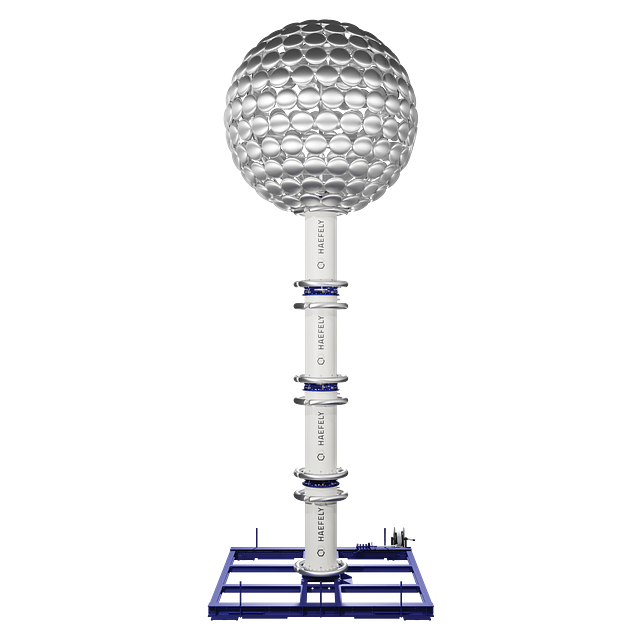

![PGR - UHV DC test systems 1600 kV](/fileadmin/_processed_/5/5/csm_PGR_-_UHV_DC_test_systems_1600_kV_-_HAEFELY_57a87067bd.png)

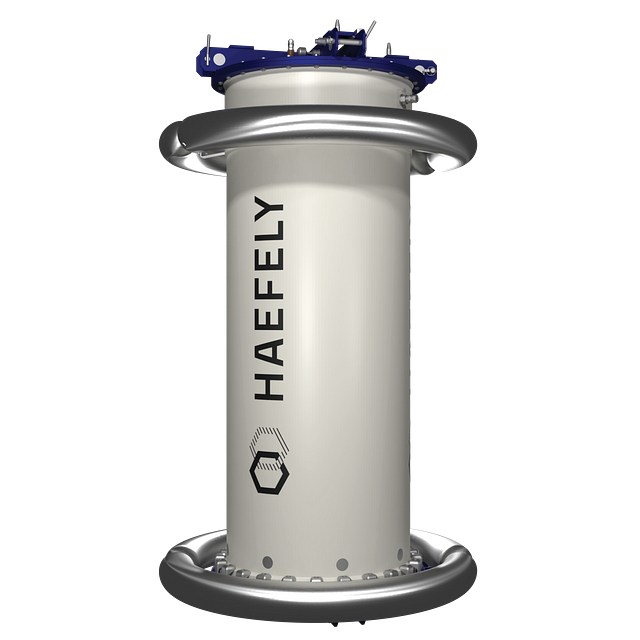

PGR Standard modules of 400 kV can be stacked to achieve voltages of up to 2 000 kV. Systems can be used for withstand voltage tests as well as partial discharge measurements. Systems are easy to build up and can be used on-site where laid cable needs to be tested.
![](/fileadmin/pfiffner-group/gui/productDB/default.jpg)
Features
- Low Ripple < 3 %
- Fast Polarity reversal

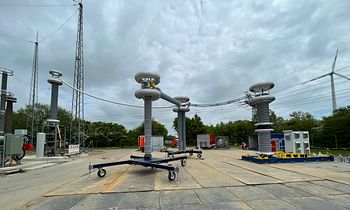

- Mobile system design - on-site usage
- Rated current available over the full voltage range
- Partial discharge measurements
