Current transformer TKB 0.5-3
The summation transformer functions as builder of the total value "ls" of the secondary currents "lm1, lm2, ..." of differenct main CT's as follows:
When the summation transformer is used for metering, the main CT's and the summation transformer have to be officially calibrated in class 0.2.

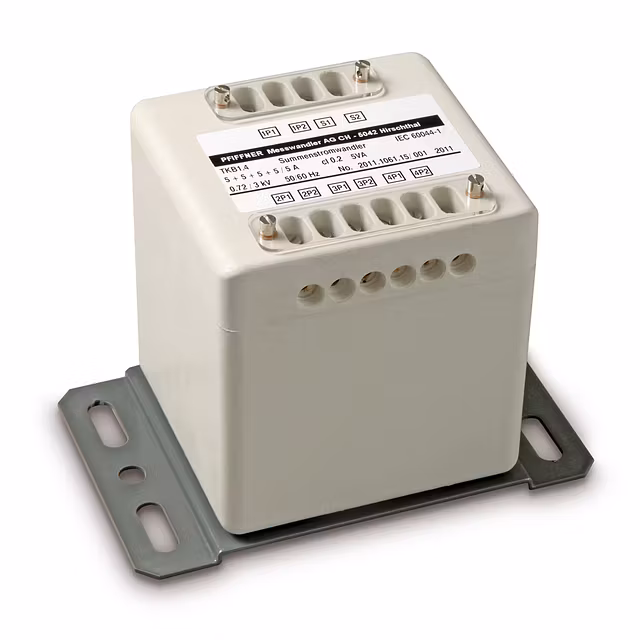

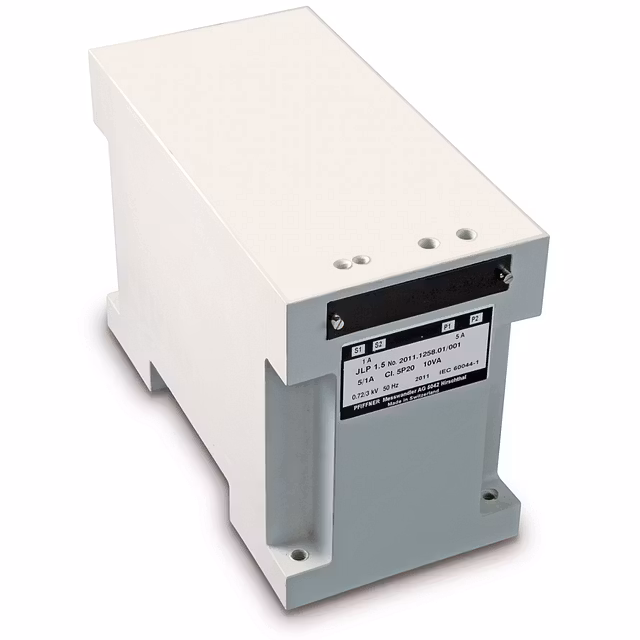

![](/fileadmin/_processed_/2/c/csm_TKB1_product_image_Produktbild_99a7620a08.jpg)
- Summation transformer for max. 4 currents
- Moulded in Polyurethane, compact design
- Mounting plate is part of delivery
- Tropic-proof
- Terminals plumbable
- Standard: IEC/EN 61869-2
- Official calibration possible (execpt TKB 0.5)
Specifications and Downloads
Technical Specifications
TKB1
![](/fileadmin/_processed_/f/e/csm_TKB1_ELP0.5_drawing_Massbild_37d224a199.png)
TKB2
![](/fileadmin/_processed_/8/c/csm_TKB2_drawing_Massbild_e50564a521.png)
TKB3
![](/fileadmin/_processed_/e/a/csm_TKB3_drawing_Massbild_2928462229.png)
Technical data
Highest operating voltage | 0.72 kV |
Test voltage | 3.0 kV |
Frequency | 50/60 Hz |
Secondary current | 5 or 1 A |
Continuous thermal current | 120 % Ipr |
Short-time thermal current | 60 Ipr 1s |
