Current transformer TGC
Bus-bar CT

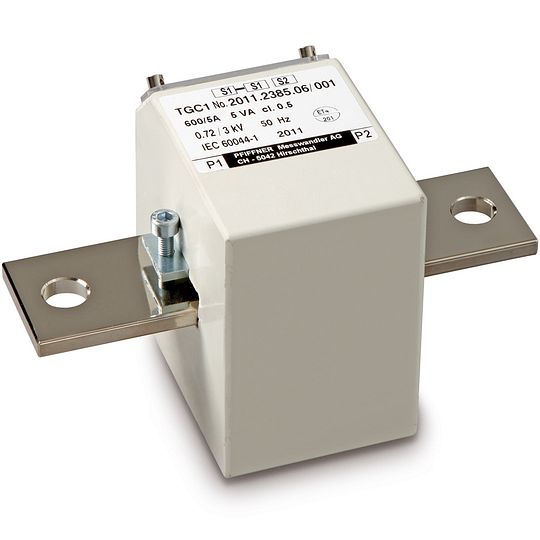

![](/fileadmin/_processed_/9/7/csm_TGC_product_image_Produktbild_fcadca63ac.jpg)
- Window type for bar
- Moulded in Polyurethane
- TGC 1+3: clamping bar as part of the delivery
- TGC 2: mounting plate as part of the delivery
- Standard: IEC/EN 61869-2
- Official calibration possible
Specifications and Downloads
Technical Specifications
TGC 1
![](/fileadmin/_processed_/b/0/csm_TGC1_drawing_Massbild_ac65c2296d.png)
TGC 2
![](/fileadmin/_processed_/2/d/csm_TGC2_drawing_Massbild_fb95635476.png)
TGC3
![](/fileadmin/_processed_/7/b/csm_TGC3_drawing_Massbild_145b0eea31.png)
Technical data
Highest operating voltage | 0.72 kV |
Test voltage | 3.0 kV |
Frequency | 50/60 Hz |
Secondary current | 5 or 1 A |
Continuous thermal current | 120 % Ipr |
Short-time thermal current | 60 Ipr 1s |
