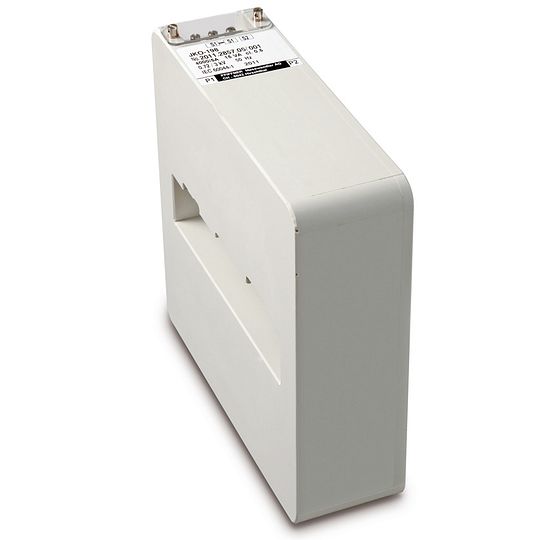

Current transformer TGF 5-8
Bus-bar CT
![](/fileadmin/_processed_/6/9/csm_TGF5-8_product_image_Produktbild_95d7f87755.jpg)
- Up to 5'000 A
- Window type for bar
- Moulded in Polyurethane
- Ratio and inner dimension according to customer specification
- On request with mounting plate and primary busbar
- Standard: IEC/EN 61869-2
- official calibration possible
Specifications and Downloads
Technical Specifications

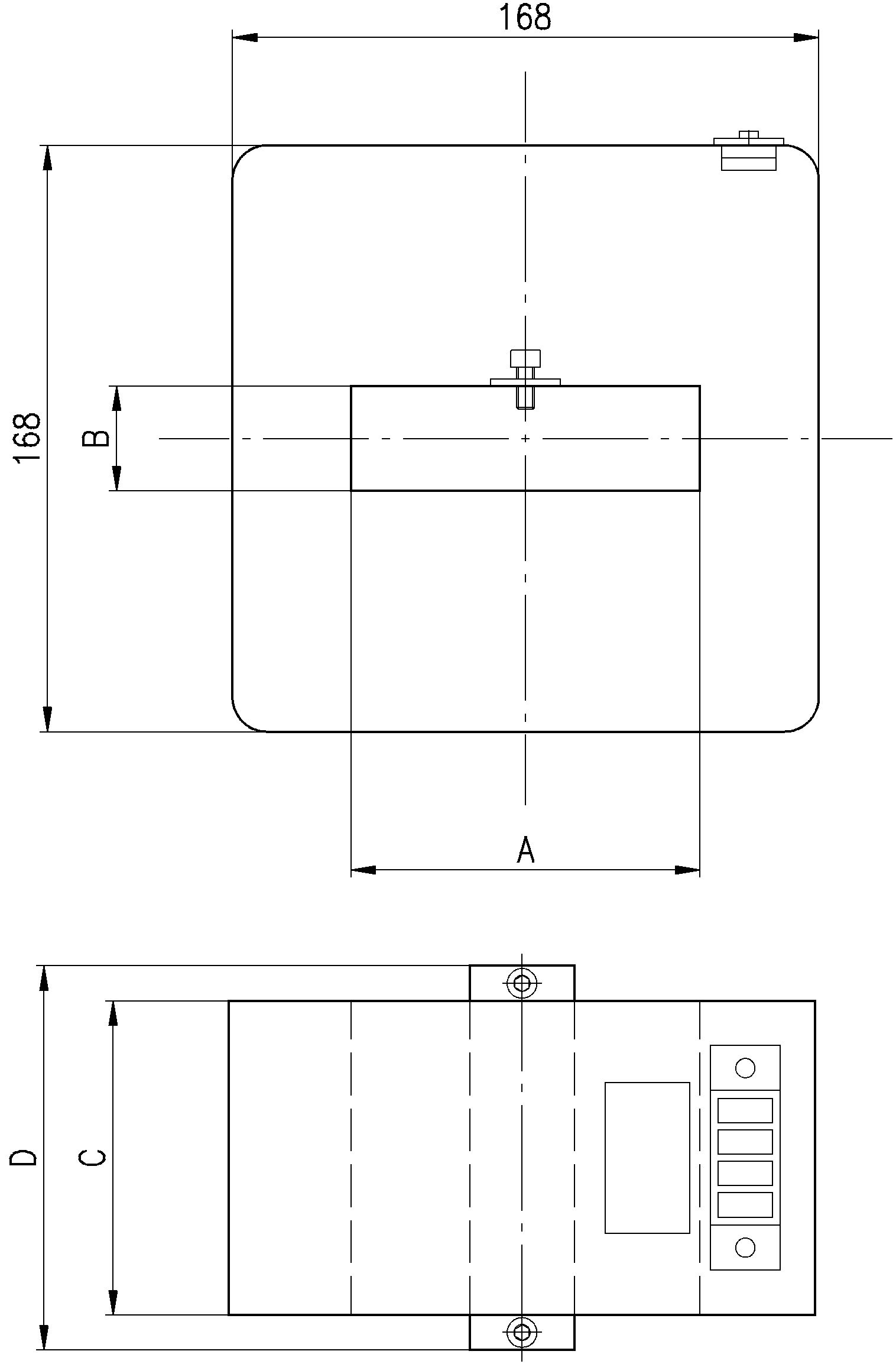

TGF5
![](/fileadmin/_processed_/8/7/csm_TGF5_drawing_Massbild_fd5671f11e.png)

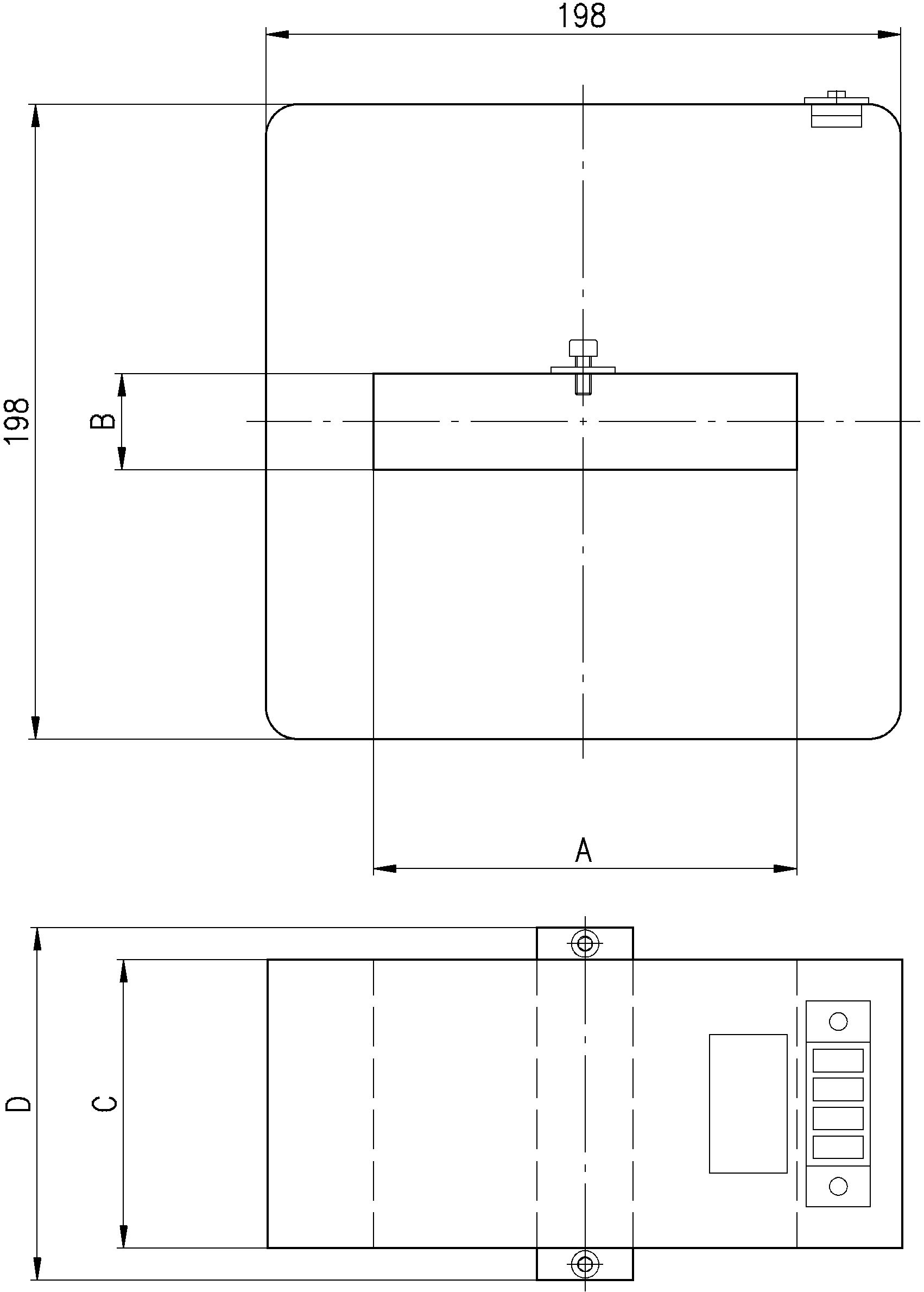

TGF6
![](/fileadmin/_processed_/4/c/csm_TGF6_drawing_Massbild_1f2d5f6a01.png)
TGF7
![](/fileadmin/_processed_/b/e/csm_TGF7_drawing_Massbild_b0e6de0f92.png)
TGF8
![](/fileadmin/_processed_/3/1/csm_TGF8_drawing_Massbild_eff5a25309.png)
Technical data
Highest operating voltage | 0.72 kV |
Test voltage | 3.0 kV |
Frequency | 50/60 Hz |
Secondary current | 5 or 1 A |
Continuous thermal current | 120 % Ipr |
Short-time thermal current | 60 Ipr 1s |
